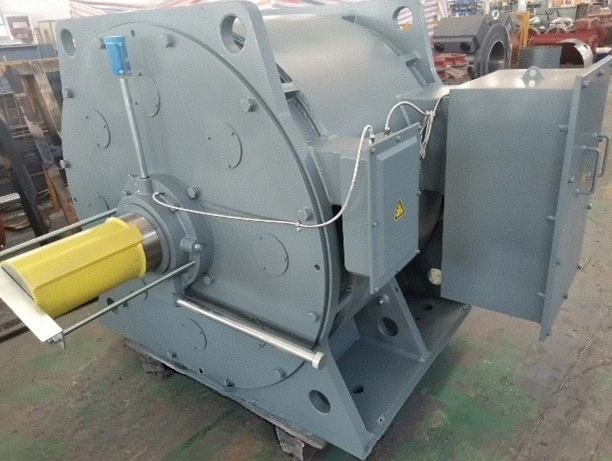

OMPC Low-Speed Variable Frequency Permanent Magnet Synchronous Propulsion Motor System Overview Description

The Low‑Speed Variable Frequency Permanent Magnet Synchronous Propulsion Motor is engineered for high‑efficiency, high‑performance applications where reliable variable‑speed propulsion is critical. Leveraging advanced permanent magnet synchronous motor (PMSM) technology, it delivers exceptional energy efficiency, precise control, and robust operation across diverse working conditions.

Typical Application:Twin-propeller propulsion, no reduction gearbox, direct propeller drive.

Key Features:

  • High Energy Efficiency: The permanent magnet synchronous design minimizes energy losses, offering superior performance and reduced operating costs compared to conventional induction motors.
  • Variable Speed Control: Integrated with modern variable frequency drives (VFDs), the motor enables accurate speed adjustment to adapt to changing propulsion demands, improving operational flexibility and response.
  • Optimized Low‑Speed Performance: Engineered for smooth and efficient operation at low rotational speeds, making it ideal for marine vessels, electric vehicles, and other heavy‑duty transport applications.
  • High Torque Density: Embedded permanent magnets in the rotor provide strong torque output even at low speeds, ensuring dependable performance under strenuous operating conditions.
  • Compact & Lightweight: Featuring a space‑saving structure and high power‑to‑weight ratio, the motor helps minimize the overall footprint and weight of the propulsion system.
Frame Size 132~H1400
Power Range 7.5KW~5000kW
Torque Range 0~600kNm
Speed Range 5~300rpm
Voltage 220V~6000V
Protection Level IP54/IP55/IP56
Installation Method B3, V1
Cooling Method IC416 (recommended power < 500kW); IC71W (recommended power > 500kW)
Insulation Temperature Rise Rating H/F;F/B

Product
Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Frame Size 132~H1400
Power Range 7.5KW~5000kW
Torque Range 0~600kNm
Speed Range 5~300rpm
Voltage 220V~6000V
Protection Level IP54/IP55/IP56
Installation Method B3, V1
Cooling Method IC416 (recommended power < 500kW); IC71W (recommended power > 500kW)
Insulation Temperature Rise Rating H/F;F/B
