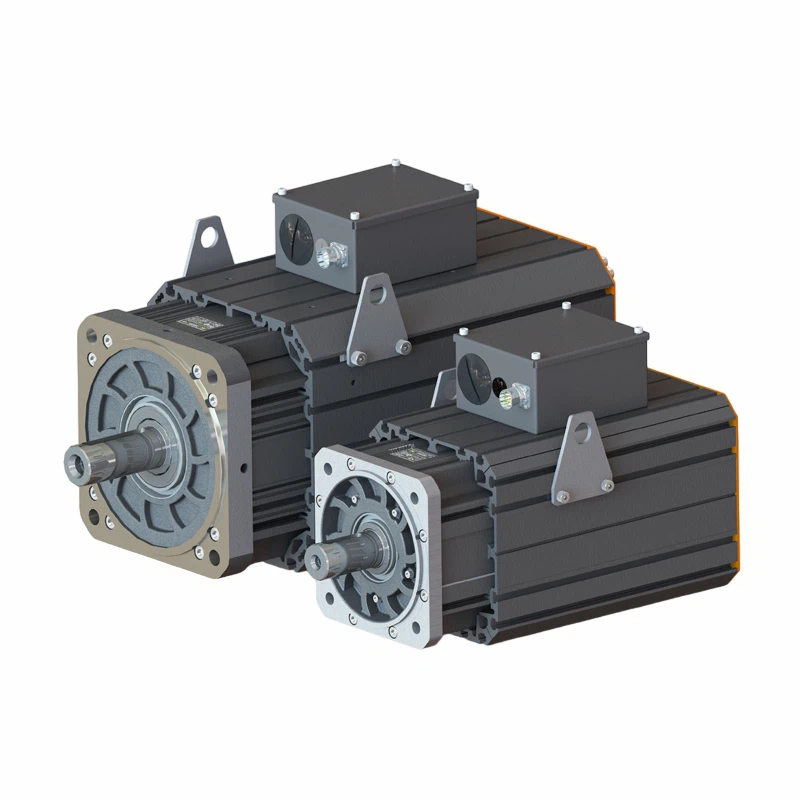

IPM Universal Servo Motor Description

IPM (Interior Permanent Magnet) universal servo motors feature an innovative rotor design with permanent magnets embedded inside, engineered specifically for high-performance servo applications. These motors utilize closed-loop feedback systems to achieve exceptional precision in position, speed, and torque regulation, making them particularly suited for applications demanding high accuracy, rapid dynamic response, and superior energy efficiency.

Key Features:

  • The permanent magnet is located inside the rotor. The rotor has simple structure and high mechanical strength.
  • The surface of the rotor is silicon steel sheet, which can make surface loss small.
  • The equivalent air gap is small and the air gap magnetic density is high. That is suitable for weak magnetic control.
  • The permanent magnet shape and configuration has high degree of freedom.
  • The reluctance torque can be effectively used to improve the torque density and efficiency of the Servo motor.
Brand Ciitto Servo
Type Synchronous motor
Efficiency IE4/IE5
AC Voltage All voltages
Rated Power 2.1~90 kW
Rated Speed 1000~5000 rpm
Power Factor ≥0.95
Poles 2,4,6,8
Housing material Cast iron / Welded steel/Cast aluminium
Protection IP55
Insulation grade F
Cooling Air / Liquid
Place of Origin China

Product
Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Brand Ciitto Servo
Type Synchronous motor
Efficiency IE4/IE5
AC Voltage All voltages
Rated Power 2.1~90 kW
Rated Speed 1000~5000 rpm
Power Factor ≥0.95
Poles 2,4,6,8
Housing material Cast iron / Welded steel/Cast aluminium
Protection IP55
Insulation grade F
Cooling Air / Liquid
Place of Origin China
