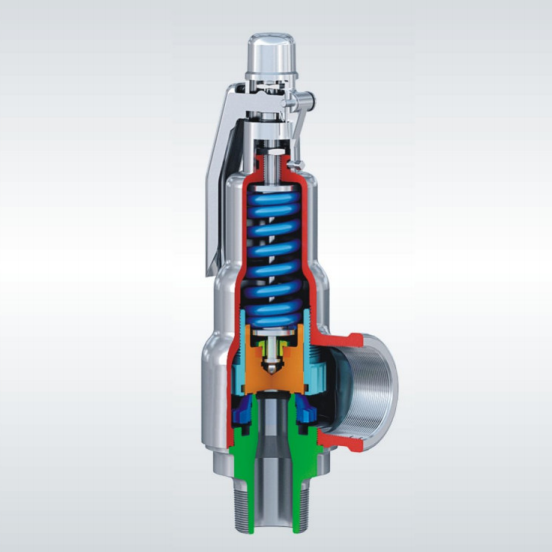

Spring full lift male thread safety valve with spanner Description

A28H/Y type are used for the equipment and pipelines with such media as of air,vapour,water and N2-H2 mixed gas at a working temperature less than 200°C. A28Y-P/R type are used for the equipment and pipelines containing corrosive media at a working temperature less than 200°C.They function as an overpressure protection device.

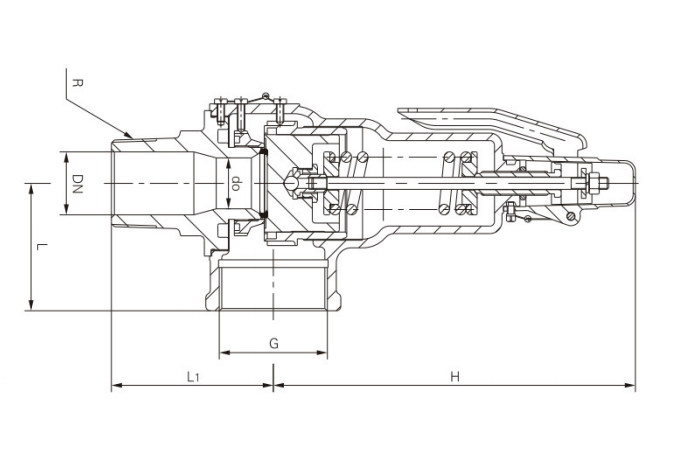

DN do R G L L1 ≈H
15 10 1/2″ 3/4″ 37 65 136
20 12 3/4″ 1″ 45 60 136
25 15 1″ 1 1/4″ 52 68 153
32 20 1 1/4″ 1 1/2″ 65 80 224
40 25 1 1/2″ 2″ 75 95 225
50 32 2″ 2 1/2″ 85 108 242
65 40 2 1/2″ 3″ 110 145 242

Product
Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

DN do R G L L1 ≈H
15 10 1/2″ 3/4″ 37 65 136
20 12 3/4″ 1″ 45 60 136
25 15 1″ 1 1/4″ 52 68 153
32 20 1 1/4″ 1 1/2″ 65 80 224
40 25 1 1/2″ 2″ 75 95 225
50 32 2″ 2 1/2″ 85 108 242
65 40 2 1/2″ 3″ 110 145 242
