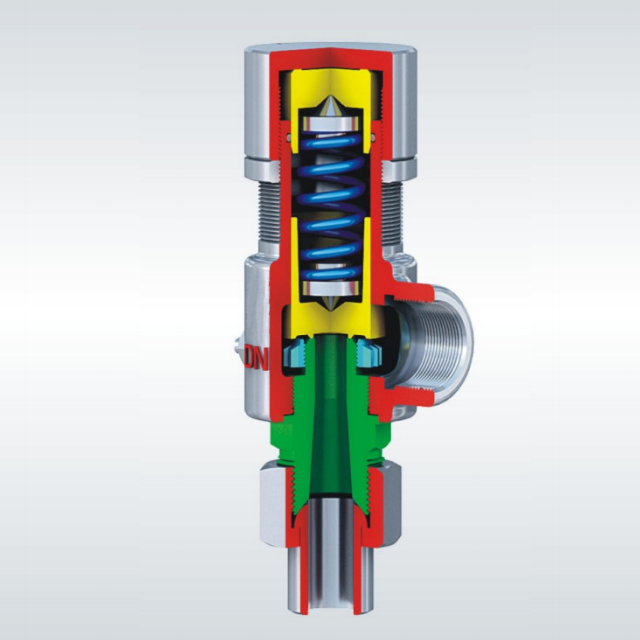

A21H type are used for the equipment and pipelines with such media as air, ammonia and petroleum at a working temperature less than 200°C.A21W type are used for the equipment and pipelines containing corrosive gases or liquid sat a working temperature less than 200°C.A21F type are used for the equipment and pipelines of liquefied gas and petroleum gas at a working temperature less than 80°C.They function as an over pressure protection device.

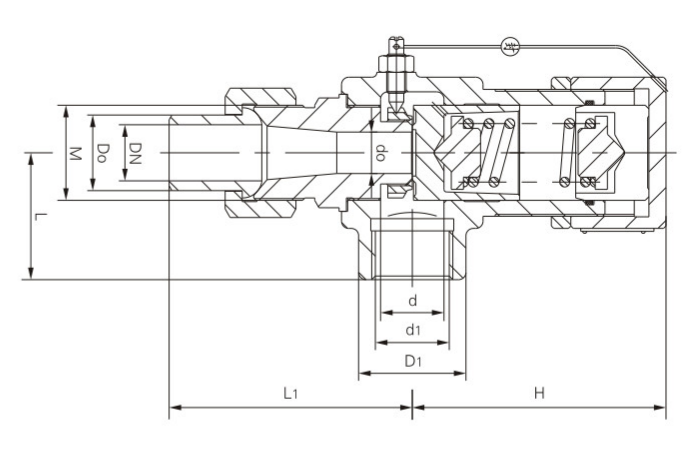

| Type | DN | do | d | Do | M | d1 | D1 | L | L1 | ≈H |
|
A21H/W/F- 16/25/40 C/P/R |
15 | 12 | 15 | 20 | M27x1.5 | G1/2" | 30 | 35 | 81 | 74 |
| 20 | 16 | 20 | 25 | M33x 1.5 | G3/4" | 34 | 40 | 87 | 81 | |
| 25 | 18 | 25 | 31 | M39x1.5 | G1" | 44 | 52 | 100 | 105 | |
|
A21Y/W- 64/100 C/P/R |
15 | 15 | 15 | 25 | M36x1.5 | G1" | 44 | 52 | 100 | 105 |
| 20 | 20 | 20 | 31 | M39x1.5 | G1" | 44 | 52 | 100 | 105 | |
| 25 | 25 | 25 | 31 | M42x1.5 | G1" | 44 | 52 | 100 | 105 |
We can design and develop according to the needs of our customers to meet the requirements of different clients.
| Type | DN | do | d | Do | M | d1 | D1 | L | L1 | ≈H |
|
A21H/W/F- 16/25/40 C/P/R |
15 | 12 | 15 | 20 | M27x1.5 | G1/2" | 30 | 35 | 81 | 74 |
| 20 | 16 | 20 | 25 | M33x 1.5 | G3/4" | 34 | 40 | 87 | 81 | |
| 25 | 18 | 25 | 31 | M39x1.5 | G1" | 44 | 52 | 100 | 105 | |
|
A21Y/W- 64/100 C/P/R |
15 | 15 | 15 | 25 | M36x1.5 | G1" | 44 | 52 | 100 | 105 |
| 20 | 20 | 20 | 31 | M39x1.5 | G1" | 44 | 52 | 100 | 105 | |
| 25 | 25 | 25 | 31 | M42x1.5 | G1" | 44 | 52 | 100 | 105 |
