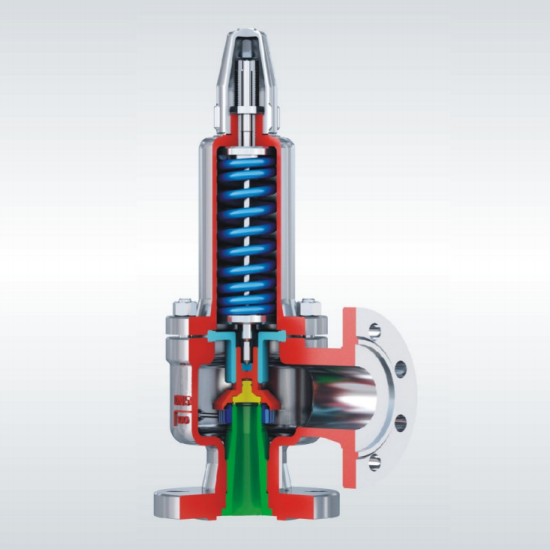

Spring full lift closed safety valve Description

A42Y-C type are used for the equipment and pipelines with such media as air ,petroleum gas and liquids at a working temperature less than300°C. A42Y- P/R type are used for the equipment and pipelines containing corrosive media at a working temperature less than200°C . They function as an overpressure protection device.

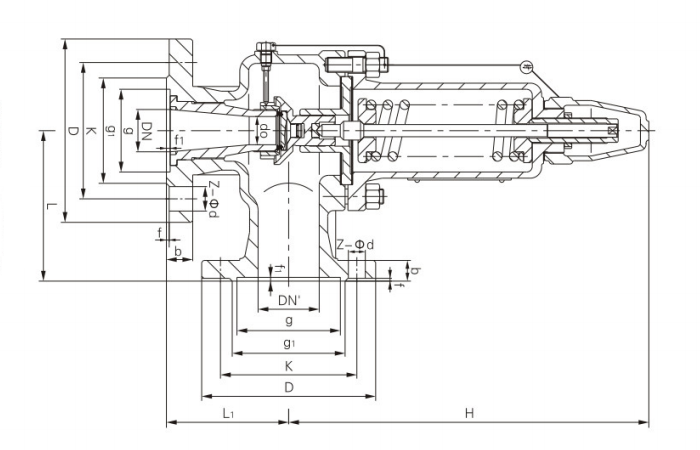

PN DN do DN' L L1 ≈H
16/25/40 20 15 25 110 95 281
25 16 32 110 95 281
32 20 40 115 100 285
40 25 50 120 110 295
50 32 65 135 120 305
65 40 80 160 140 394
80 50 100 170 135 406
100 65 125 205 160 511
125 80 150 210 190 586
150 100 175 255 230 601
200 125 250 305 260 734
250 150 300 350 320 928
300 200 400 370 350 1159
350 250 500 375 415 1314
400 280 500 395 415 1530
64/100 20 12 25 110 100 276
25 16 32 110 100 276
32 20 40 130 110 287
40 25 50 135 120 292
50 32 65 160 130 383
65 40 80 175 160 479
80 50 100 175 160 489
100 65 125 195 195 562
150 100 200 185 260 832

Product
Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

PN DN do DN' L L1 ≈H
16/25/40 20 15 25 110 95 281
25 16 32 110 95 281
32 20 40 115 100 285
40 25 50 120 110 295
50 32 65 135 120 305
65 40 80 160 140 394
80 50 100 170 135 406
100 65 125 205 160 511
125 80 150 210 190 586
150 100 175 255 230 601
200 125 250 305 260 734
250 150 300 350 320 928
300 200 400 370 350 1159
350 250 500 375 415 1314
400 280 500 395 415 1530
64/100 20 12 25 110 100 276
25 16 32 110 100 276
32 20 40 130 110 287
40 25 50 135 120 292
50 32 65 160 130 383
65 40 80 175 160 479
80 50 100 175 160 489
100 65 125 195 195 562
150 100 200 185 260 832
