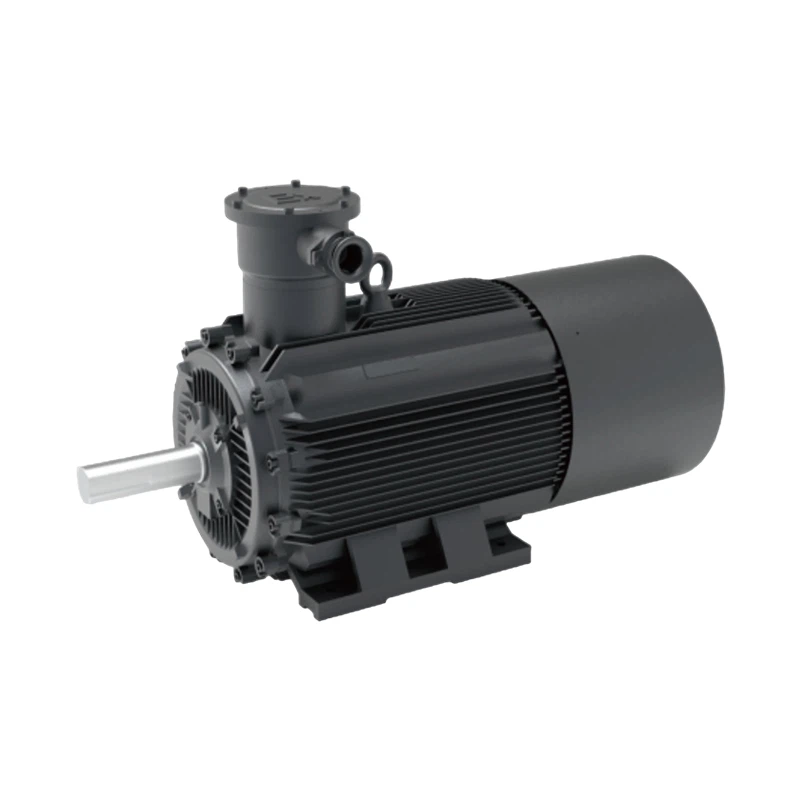

Permanent Magnet Explosion-Proof Motors For Mechanical Equipment

Ciitto Servo's permanent magnet explosion-proof motors for machinery are engineered to enhance both operational performance and safety in hazardous environments. Representing the forefront of industrial drive technology, these motors deliver exceptional efficiency, reliability, and protection across diverse applications.

Key features:

• The main junction box of the motor is located at the top of the frame, which can be left and right to meet the requirements of different outlet ways of users;
• For motors with frame size 160 or above, stator temperature measuring device, bearing temperature measuring device, heater and non-stop oil injection and discharge device can be provided according to user's needs;
• For motors with frame number 225 or above, the bottom foot adjustment bolt hole can be provided according to the needs of users;
• The junction box, chassis, end cover and wind cover are designed to be conducive to noise reduction and ventilation;
• The motor adopts insulation system with thermal classification 155 (F), so as to prolong the service life of the motor;
• The working system of the motor is S1, the Cooling mode is IC411, and the enclosure Protection level is IP55;
• A C-type center hole is reserved in the motor shaft extension face to facilitate the connection of load;
• A drain valve is installed at the bottom of the motor frame for the frame number 132 and above;
• Using electromagnetic field finite element analysis software to carry out accurate electromagnetic scheme design;
• Ndfeb magnetic steel adopts advanced anti-corrosion and high temperature resistance technology, which greatly reduces the risk of anti-aging and demagnetization of magnetic steel;
• Excellent starting characteristics;
• High efficiency, energy saving, safety and environmental Protection.
