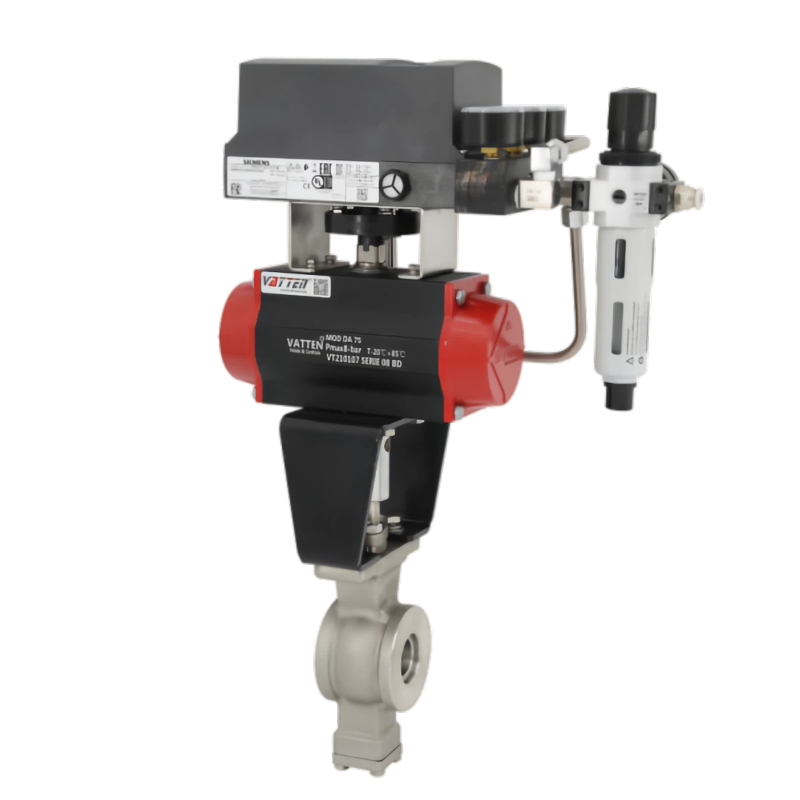

Pneumatic V-type Ball Valve Description

The VATTEN pneumatic V-type ball valve adopts a specially designed eccentric structure with a hemispherical form, ensuring effective material shut-off. It is particularly suitable for control systems in industries such as pulp, slurry, papermaking, chemicals, petroleum, chemical fibers, power generation, metallurgy, pharmaceuticals, and environmental protection.

Actuation Method Pneumatic actuator made of double-acting aluminum alloy, recommended air supply pressure: 5-7 kg
Size DN25~DN500
Pressure range PN 10~P63
ANSI 150/300/600
JIS 10K 16K
temperature -29°C - 450°C
Sealing Class Metal-seated, Class IV Seal
Soft-seated, Class VI Seal
Body Material WCB,SS304,SS316,SS316L,2205,2507
Valve Trim / Stem Material SS410,Special Material
Seat Material STL,PEEK, PCTFE
Flange Material GB/T 9113.1, JB/T 79.1, HG 20592,
ASME B 16.34, ISO 7005
Face to Face Dimension ISA S75.04, IEC/DIN 534-3-2
Applications Pulp and Paper、Wastewater Treatment、Food and Beverage、Chemical Industry、Energy Industry、Steel Industry and so on

Product
Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Actuation Method Pneumatic actuator made of double-acting aluminum alloy, recommended air supply pressure: 5-7 kg
Size DN25~DN500
Pressure range PN 10~P63
ANSI 150/300/600
JIS 10K 16K
temperature -29°C - 450°C
Sealing Class Metal-seated, Class IV Seal
Soft-seated, Class VI Seal
Body Material WCB,SS304,SS316,SS316L,2205,2507
Valve Trim / Stem Material SS410,Special Material
Seat Material STL,PEEK, PCTFE
Flange Material GB/T 9113.1, JB/T 79.1, HG 20592,
ASME B 16.34, ISO 7005
Face to Face Dimension ISA S75.04, IEC/DIN 534-3-2
Applications Pulp and Paper、Wastewater Treatment、Food and Beverage、Chemical Industry、Energy Industry、Steel Industry and so on
