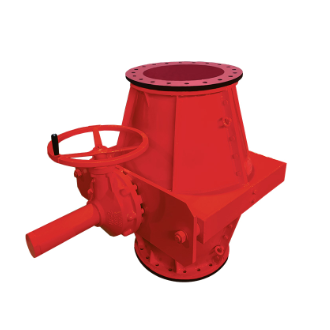

This model is bevel gear actuated to squeeze the internal hose for on-off and flow regulation. The valve body features an attractive appearance with a smooth paint finish. It is fitted with switch indicator marks for simple operation.
The hose is the only medium-wetted component. Rubber hoses of different properties are selected for various working conditions, suitable for a wide range of complex service scenarios with high wear resistance, strong corrosion resistance, excellent stability and more.

| Valve Body Material | Cast iron, riveted carbon steel, stainless steel, aluminum alloy, etc. |
| Rubber Material | Natural rubber (black rubber), LAD special rubber, EPDM, NBR, etc. |
| Closing Member | Carbon steel, 2Cr13 or stainless steel |
| Operating Temperature | -40°C ~ +150°C |
| Nominal Pressure | 0-2.5 MPa |
| Size Range | DN20 ~ DN2000 (Extra large sizes available upon custom request) |
| Flange Standard | GB, DIN, JIS, ASME, GOST, etc. |
We can design and develop according to the needs of our customers to meet the requirements of different clients.
| Valve Body Material | Cast iron, riveted carbon steel, stainless steel, aluminum alloy, etc. |
| Rubber Material | Natural rubber (black rubber), LAD special rubber, EPDM, NBR, etc. |
| Closing Member | Carbon steel, 2Cr13 or stainless steel |
| Operating Temperature | -40°C ~ +150°C |
| Nominal Pressure | 0-2.5 MPa |
| Size Range | DN20 ~ DN2000 (Extra large sizes available upon custom request) |
| Flange Standard | GB, DIN, JIS, ASME, GOST, etc. |
