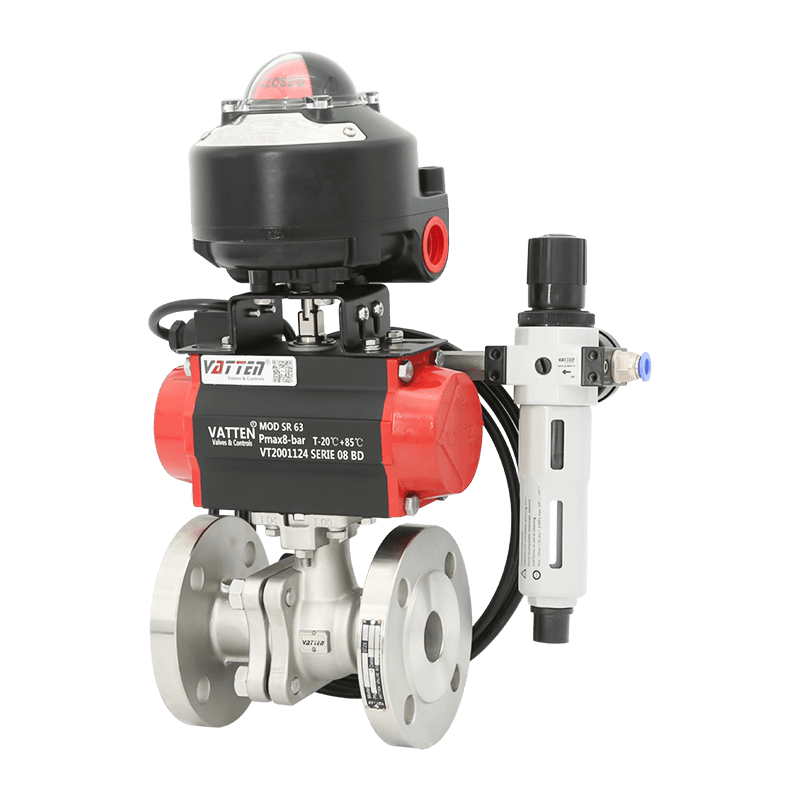

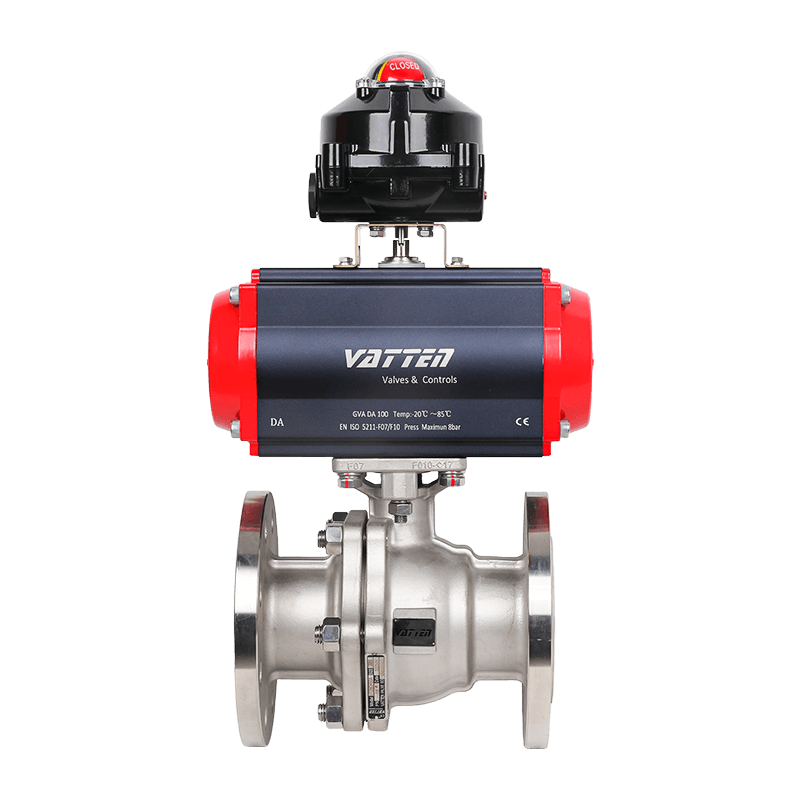

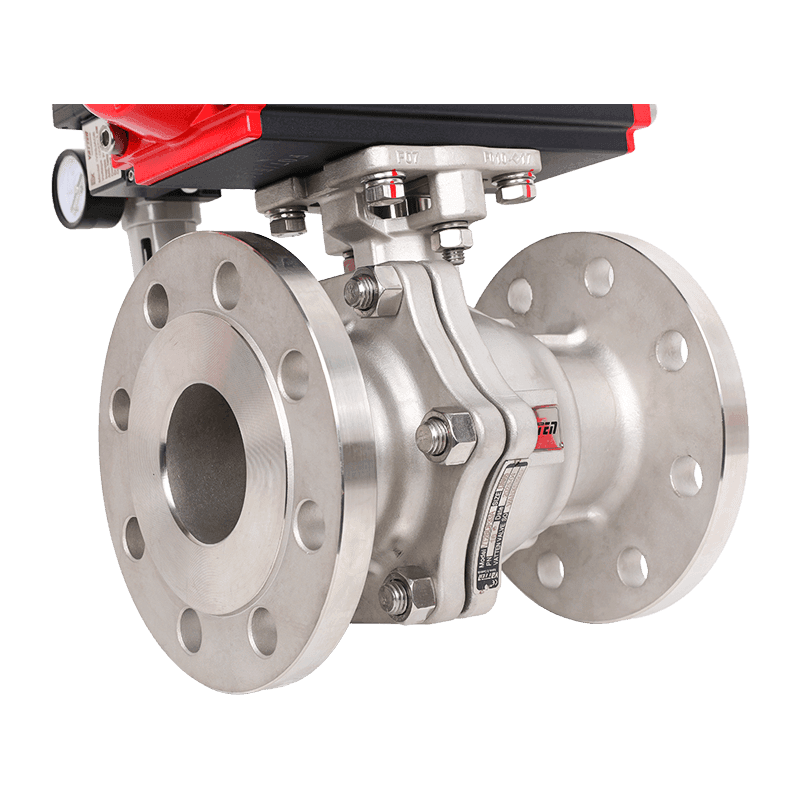

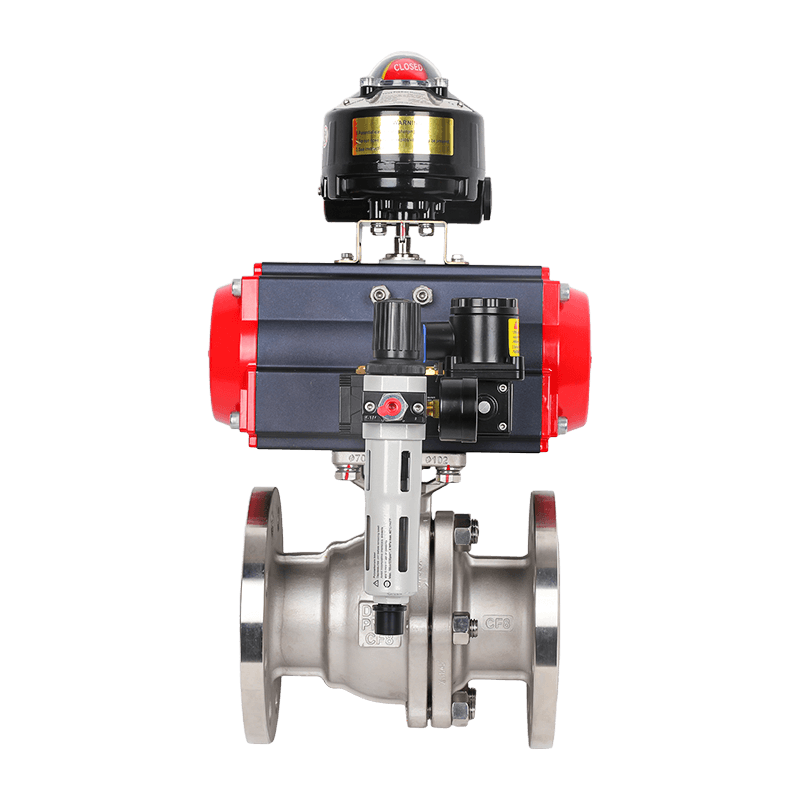

Pneumatic Explosion-proof Flanged Ball Valves Description

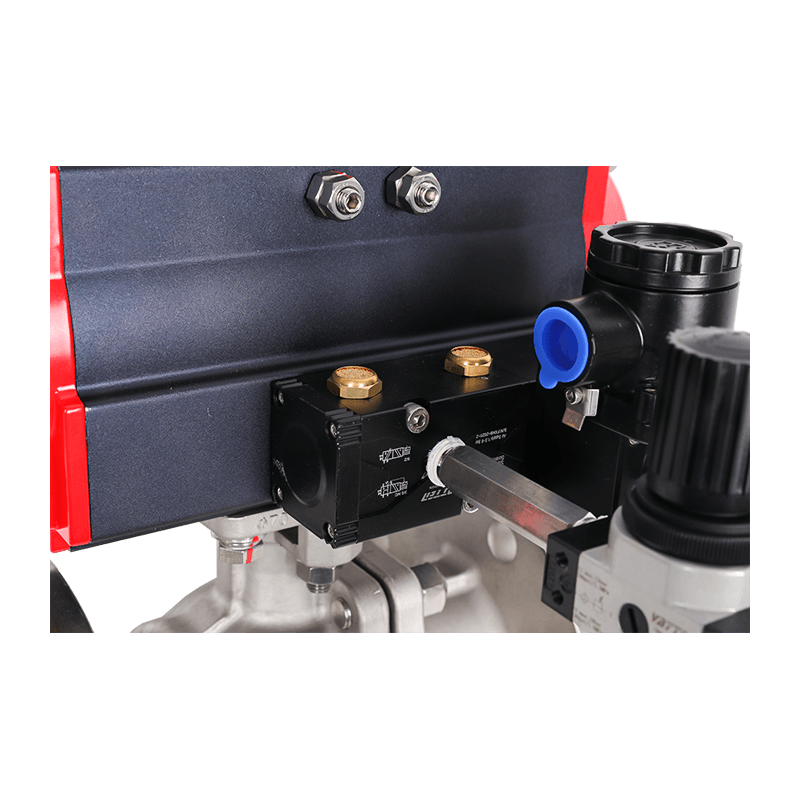

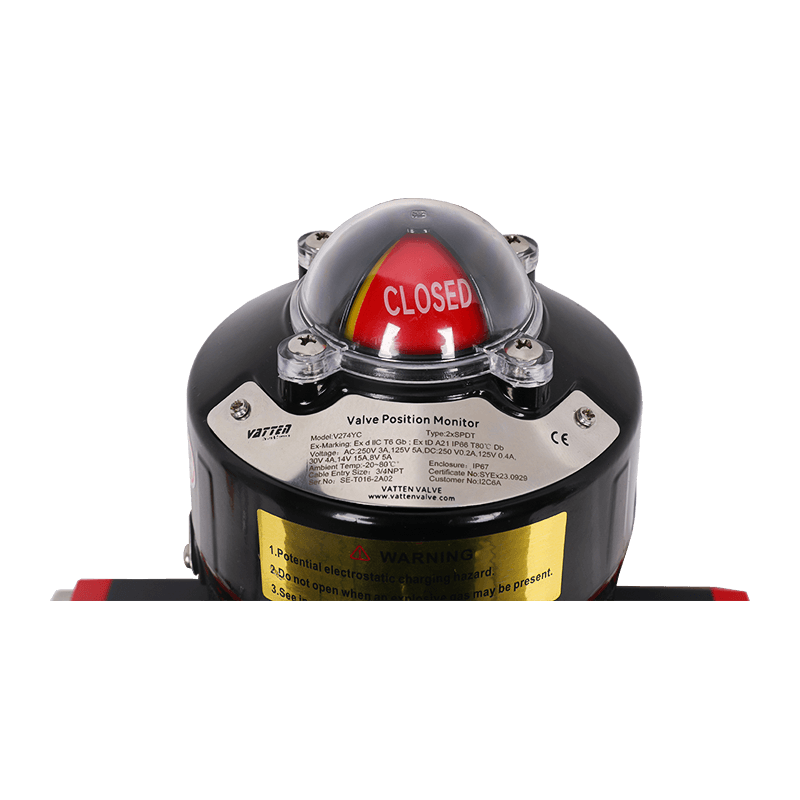

The VATTEN pneumatic explosion-proof flanged ball valves are equipped with explosion-proof limit switches and explosion-proof solenoid valves, ensuring compliance with strict explosion-proof standards. Both the limit switch and solenoid valve are rated to ExdIICT6, ensuring safe and reliable operation in hazardous environments.

The ball valve is TÜV SIL3 certified, offering high safety and suitability for industries with stringent safety requirements. This makes the VATTEN pneumatic explosion-proof flanged ball valve a trusted choice, effectively safeguarding the security and stability of industrial processes.

Drive Type

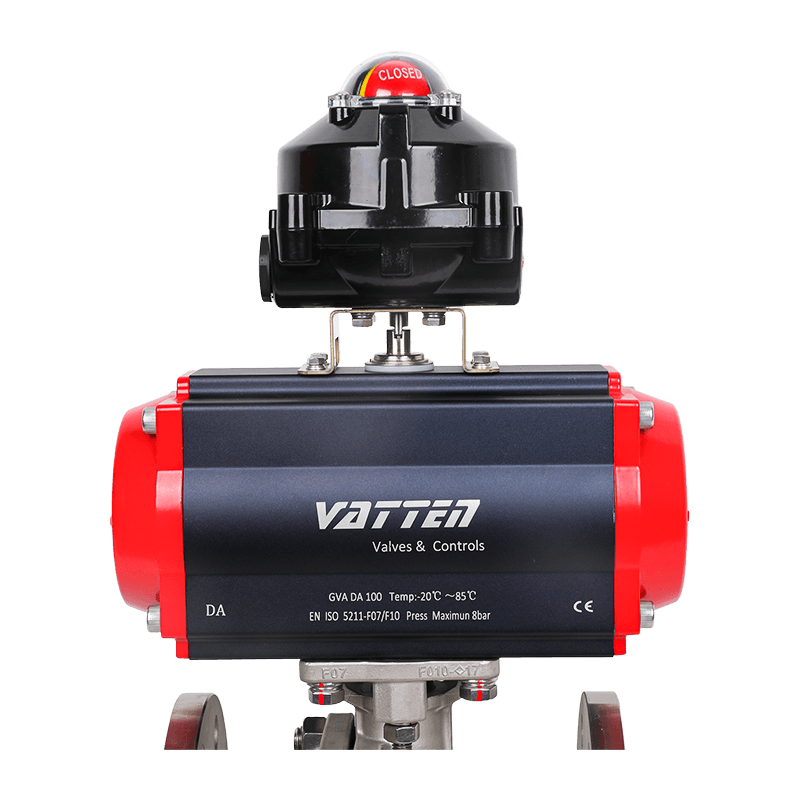

Pneumatic actuator made of aluminum alloy

Valve Type

Two-piece

Valve Body

SS304, SS316, SS316L, 2205, 2507, Ti2

Ball Material

SS304, SS316, SS316L, 2205, 2507, Ti2

Seat Material

PTFE, TFM1600, TFM4215, PI, PPL

Pressure

150LB - 600LB

Temperature

-20°C - 400°C

Flange Standard

HG, ANSI, JIS, DIN

Size Range

DN15 - DN500

Applications

Petroleum, chemical, water treatment, machinery, compressed air

Product
Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Drive Type

Pneumatic actuator made of aluminum alloy

Valve Type

Two-piece

Valve Body

SS304, SS316, SS316L, 2205, 2507, Ti2

Ball Material

SS304, SS316, SS316L, 2205, 2507, Ti2

Seat Material

PTFE, TFM1600, TFM4215, PI, PPL

Pressure

150LB - 600LB

Temperature

-20°C - 400°C

Flange Standard

HG, ANSI, JIS, DIN

Size Range

DN15 - DN500

Applications

Petroleum, chemical, water treatment, machinery, compressed air

About Us

Vatten Valve Group, a globally renowned industrial automation valve enterprise originating from Saarland, Germany, specializes in the research, development, and manufacturing of core products such as automatic control ball valves, butterfly valves, and regulating valves. Pneumatic Explosion-proof Flanged Ball Valves Suppliers and Pneumatic Explosion-proof Flanged Ball Valves Factory. Leveraging our exceptional technological expertise, we deliver innovative valve solutions and professional technical support to critical industries including energy, chemical, water treatment, pharmaceutical, and food processing.

The Group operates four state-of-the-art manufacturing bases strategically located in Shanghai, Tianjin, Lishui, and Jiaxing, China. To better serve international markets, we have established branch offices in key strategic locations including the United Kingdom, Turkey, Belarus, Saudi Arabia, and Indonesia. The establishment of our Indonesian office significantly enhances our service capabilities in the Southeast Asian market, ensuring timely and efficient technical support and services for local partners and clients.

Rooted in the German tradition of precision manufacturing, Vatten Valve maintains its focus on automatic control valves while strictly adhering to international quality standards. We are committed to continuous innovation, providing customers with superior performance products, Pneumatic Explosion-proof Flanged Ball Valves Wholesale, professional technical support, and comprehensive fluid control solutions, empowering them to address complex industrial fluid control challenges.

Certificates We’Re An Approved
Innovative Company
  • ICR-1
  • ICR-2
  • ISO9001
  • ISO9001
  • ISO14001
  • ISO45001
  • ISO 15848
