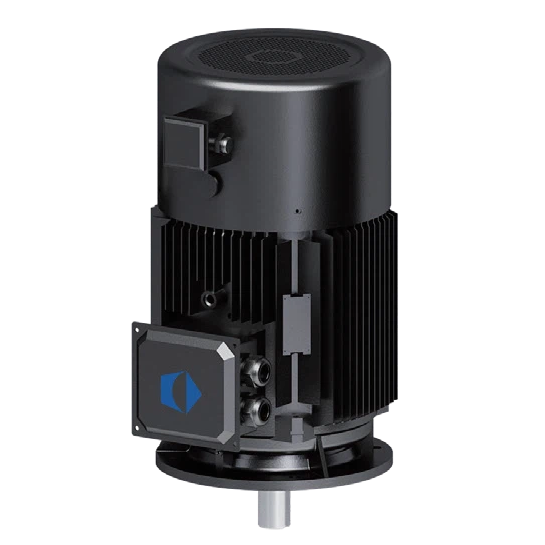

Low-VoltageMotor ( Direct Drive Motor) ——TYZD Series Low-Speed Permanent Magnet Direct Drive Motor

The TYZD series of permanent magnet low-speed direct-drive motors feature an IP55 protection rating for the entire unit and achieve Class 1 energy efficiency as per the GB30253-2013 standard. Standard units are built with Class F insulation, with options for Class H. Customization for compact frame sizes and non-standard speeds is also available.

Advantages

The direct-drive motor establishes itself as a superior solution by replacing traditional drive systems, enabling significant energy savings ranging from 8% to 50%. This high efficiency is powered by high-performance rare earth permanent magnet materials, which serve as a robust magnetic field source. The absence of a gearbox or mechanical reduction device not only minimizes vibration and noise but also contributes to a maintenance-free design, as maintenance-free bearings eliminate the need for any routine upkeep. Furthermore, a rational flow path design and exceptional heat dissipation capability ensure safe and reliable long-term operation. Combined, these advantages make direct-drive technology an energy-saving, quiet, and maintenance-free solution with superior performance and reliability.

Encoder Options

To meet diverse application requirements, the motor is compatible with a wide selection of encoders available on the market. Options include the Endat Single-Turn Absolute Encoder, Endat Multi-Turn Absolute Encoder, 1Vpp Sine-Cosine Encoder, Rotary Encoder, and Square Wave Incremental Encoder.

Cooling Methods

Flexible cooling methods are available to suit various operational environments and demands. Customers can choose from natural cooling, air cooling, or liquid cooling to ensure optimal thermal management.

Dimensions & Applications

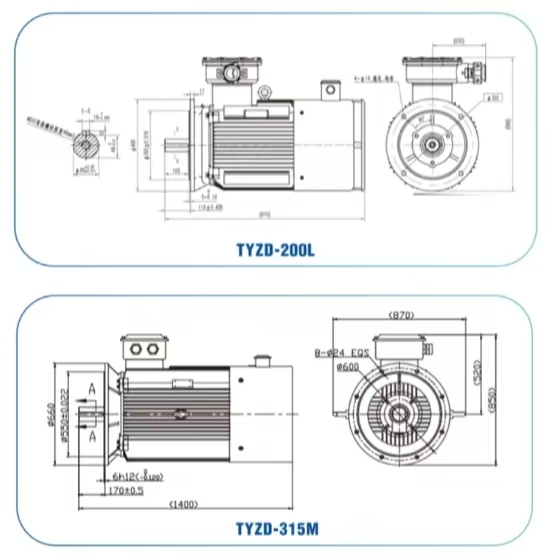

The permanent magnet direct-drive motor is engineered with a compact and efficient design, detailed in the accompanying dimensional drawings. Its versatility allows it to deliver exceptional performance and outstanding energy-saving efficiency across a broad spectrum of industries, including steel metallurgy, mining, biopharmaceuticals, power generation, and the chemical industry.
